FarmCam Flex 5MP Starter kit

549 EUR
excluding VAT
SKU: 1120
System: FLEX
✔︎ Engineered with simplicity in mind
✔︎ 1500 range free line of sight
✔︎ Power and internet connection in one cable
FarmCam Flex 5MP is a unique camera system and the easiest and most innovative way to monitor your farm and animals remotely.

✔︎ Register your FarmCam Flex 5MP Starter kit purchase and get a 3-year warranty

Say goodbye to complicated setups and technical challenges! Engineered with simplicity in mind, installing the FarmCam Flex system is as straightforward as can be. You do not need any special tools or skills, and it needs minimal configuration. All that is required is a screwdriver, drill, hammer, and a ladder. The FarmCam Flex starter kit also includes four 10-meter combined network and power cables, which allows you to place the camera(s) and antennas in optimal locations.

No need for internet connection in your barn or farm building, FarmCam Flex extends your household internet connection to wherever you need it. The system includes two antennas (Flex Bridge 300), one mounted on your house and one on the building you want to monitor. This creates a wireless internet bridge, without the need for long and buried cabling. The antennas have a transmission range of up to 1500 m with free line of sight.

The Flex Hub is a unique network switch with integrated power supply that provides the connected camera with both power and internet connection in one cable. The Flex Starter kit supports up to three cameras, but you can easily extend the system by adding another Flex Hub. Simply connect the two Flex Hubs with an ethernet cable and now you have a system that supports up to seven cameras.

The system is tailored to the stringent requirements of a farm environment, including weatherproofing all parts except for the connection to the home router. The Flex Hub power supply is integrated in the weatherproof casing, making the whole installation weatherproof.

The camera has an IR light with an impressive 30 m range, enabling you to monitor your animal’s wellbeing or property in low-light conditions. This means you can check in on your animals even during nighttime, without leaving the comfort of your bed.

 The camera has a 5MP (2560x1920) resolution lens, with a wide field of view (80° horizontal, 42° vertical) letting you view a high-quality video stream directly in your smartphone, tablet, or computer. The camera records 5-8 seconds before an event occurs and it has constant AI recognition which reduces false alarms. Each camera has 64GB local storage and it is also possible to share individual cameras with your co-workers or friends.

Included in the package:
1 x FarmCam Flex 5MP camera
1 x Flex Hub unit
1 x Bridge 300
1 x EPOWER adapter
4 x 10 m Ethernet cables
1 x 1 m Eternet cable
1 x Cable extender

Camera

Article number: 1121
IP classification: IP66 Recording fram rate: Up to 30 fps
Video resolution:  2560 x 1920p (5MP) Local storage: Max 256GB
Night vision: Up to 30 meters Micro SD card: 64GB (included)
Angle of view: 80° horizontally, 42° vertically Power Source: IEEE 802.3af, 48V Active
Audio: Built-in microphone Smart alarm: Person, Vehicle & motion detection
Size: Φ 186 x 67 mm Image Sensor: CMOS
Weight: 415g Operating temperature: -10°C to +55°C

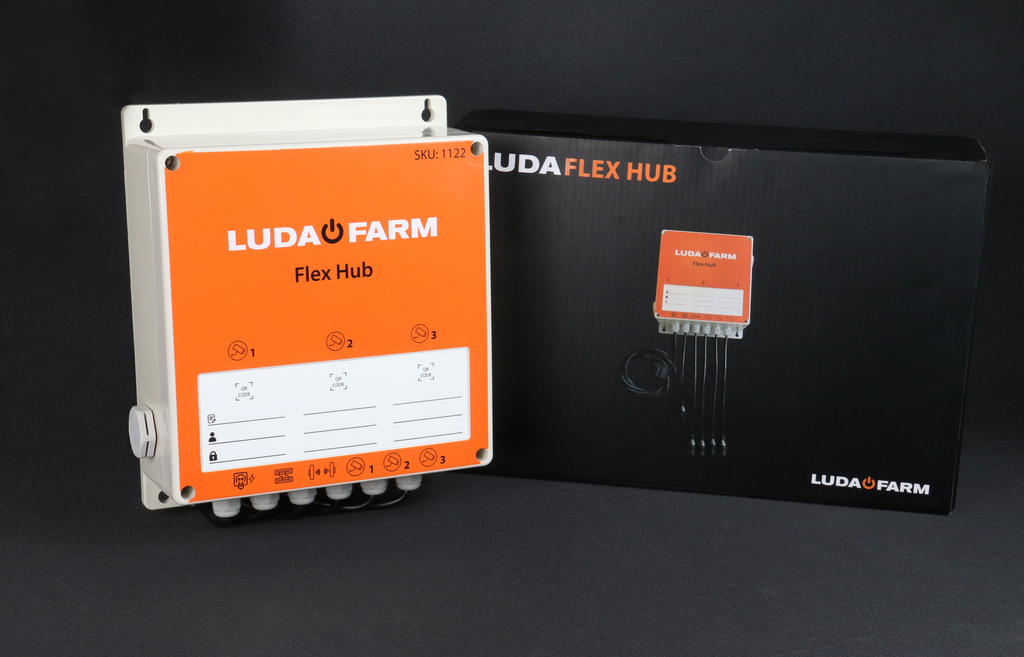

Flex Hub
Bridge 300
Article number: 1122 Article number: 1123
Ports: 1 x 100 Mbps for WAN
4 x 100 Mbps for LAN
Physical Ports: 1 x 10/100 Mbps WAN RJ45 (Service only)
1 x 10/100 Mbps LAN RJ45 (POE)
1 x Pair button
1 x Receiver/Sender Switch
Port power voltage: 48V,  PoE standard: IEEE 802.3AT/ IEEE 802.3AF Antenna: Built-in 2x14dBi
Max. port power: 30 W IP classification: IP65
LED indicator: 5 green link/active LEDs Wireless standard: IEEE802.11b/g/n
IP classification: IP44 Transmission Rate: 40Mhz: 300 Mbps
Operating temperature:   -20°C to 55°C Working temperature:   -40°C to 55°C
Storage temperature:   -40°C to 85°C Storage temperature:   -50°C to 75°C
Power Supply: 100-240V, 50/60 Hz, Max 6.5 A Power: 802.3.af/at (POE)
48V POE Power adapter
<8W consumption
Power consumption idle: 5.5 W Size: 262 x 80 x 53 mm
Size: 288.5 × 70 × 188 mm Weight: 0,32 kg
Weight: 1,1 kg

*

Installation steps

1. Mount and connect antenna number 1 to your home router using the included EPOWER adapter
2. Mount and connect antenna number 2 to the location you want to monitor
3. The wireless signal between the antennas has a transmission range of up to 1500 m with free line of sight
4. Install and connect Flex Hub with antenna number 2
5. Remove the small QR code on the camera(s) and attach it to the Flex Hub
6. Place the camera(s) around the location you want to monitor
7. Connect the camera(s) to the Flex Hub unit
8. Download the FarmCam 2.0 app from App Store or Google Play
9. To add the camera in the FarmCam 2.0 app, scan the QR code on the Flex Hub or the camera

Read more about the FarmCam 2.0 app
